ACBA Mapping: Employing ‘UsedRange’ in Excel

When reviewing a worksheet the ACBA Mapping software uses VBA’s ‘UsedRange’ function to identify the full scope of the sheet. This function is excellent for identifying separate ranges employed in a worksheet, but has some drawbacks. One of these drawbacks has been identified while reviewing the Enron corpus of files (https://figshare.com/articles/dataset/Enron_Spreadsheets_and_Emails/1221767)

The Enron corpus of spreadsheets and other correspondence is huge. Felienne Hermans however has whittled the number of workbooks down to 16,189 unique items.  https://www.felienne.com/archives/3634  The workbook that clearly displayed the UsedRange issue is named ‘benjamin_rogers__938__historical outages.xlsx’. Clearly the files have been renamed to prevent duplicates. In this blog though I will refer to it as ‘Historical Outages’.

In the original Mapping software, users were advised when the ‘UsedRange’ exceeded half a million cells. This allows the user to escape from the process and turn off the computer’s sleep mode. Sleep mode automatically halts behind the scenes processing, effectively preventing the code from completing its task.

The first worksheet ‘Sheet1’ in the Historical Outages workbook contained over 10 million cells in its ‘UsedRange’. I turned off sleep mode accordingly. It took over 5 days to complete the processing.

This was a large worksheet, but structurally fairly simple. The list of generic formulae shows only 3 types.

Generic formulae list

Even type F2 has a count less than 200K. What was happening in the remainder of the 9.75 million worksheet cells and why did it take so long?

Inspecting the map of Sheet1, shows that the active part of the worksheet stops at row 972.

End of the active portion of worksheet

From row 972 to row 49,813 of the map sheet appear to be empty cells. But I am not able to assert that with any certainty unless I can prove by other means that there are no other active cells.

End of 'UsedRange'

In order to resolved the conundrum of whether there were active cells in the almost 49,000 rows of apparently empty space, I used some of Excel’s other review functions. These are summarised in the ‘Data List and Mapping Index’ of the map book.

I note the total number of formulae for the workbook is the sum of the formulae contained in Sheet1 and Sheet2. This is as expected, but the list of 7 names in the workbook may prove interesting especially if they are associated with Sheet1.

Only one name refers to Sheet1

In this case on one name refers to Sheet1. FilterDatabase is a standard name created when you filter a list/database. The filter occurs entirely within the active formula area.

One of the standard approaches for avoiding these difficulties with UsedRange, is to employ the functions .End(xlDown) and .End(xlToRight) functions. These work well for single database type tables, but are likely to cause errors when employing multiple tables in single work sheet. My review of the Enron files so far, suggests that employing multiple tables is a very common practice. Indeed one could argue that the possibility multiple tables within a single worksheet is one of its primary advantages over a database.

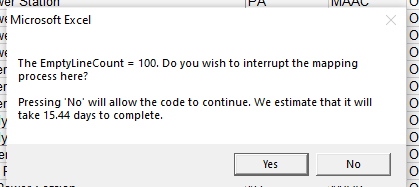

Within ACBA Mapping, I have adopted a different approach. Within the code for the worksheet review the mapping process monitors how many consecutive rows are completely empty of any functional cells. If the count of consecutive rows reaches 100, if offers the user the opportunity to skip the rest of the mapping process and proceed to report on mapping reviewed so far.



Skip the remainder of the mapping process.

It turns out the estimate of the time for completion is grossly inaccurate, but the first mapping of the nearly 50K spreadsheet rows took a little over 5 days. Should readers wish to view a copy of the original file and its associated map file, they can be downloaded as a compressed zip file – HistOutage.zip.
